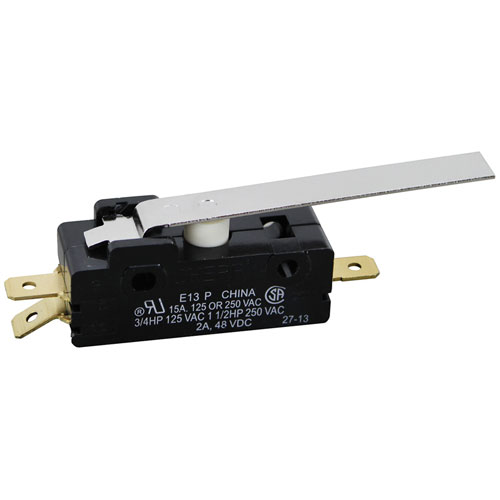

Waste King 103551 Door Micro Lever Switch 15 Amp 250V/125V

SKU: 103551 Availability:
Out of Stock
(0)
null
Have a Question? +1 (866) 963-0907

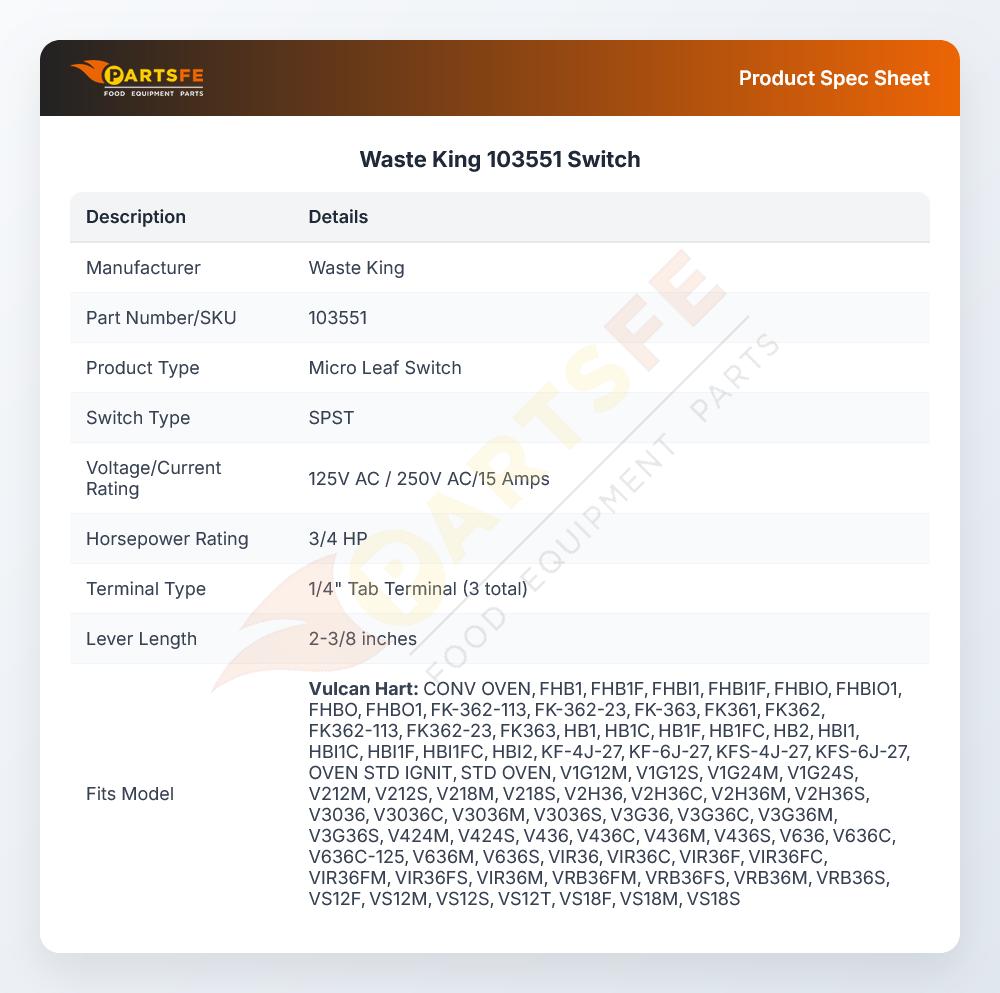

Specifications:

Attribute Details
Door Micro Lever Switch, Momentary,
15 Amp-250V/125V~
3/4Hp, Spst~
1/4" Tab Term (3)~
Lever 2-3/8",
Hobart Oven Cn85
Wolf Oven Kch & Kchss & Xch (-129 Model Only), Kf, Kfs.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 3.4 in
  • Height: 1 in
  • Width: 0.6 in

More Information:

DEAN:

10-4036 104036

FRYMASTER:

10-4036 104036 FM10-4036 FM104036

HOBART:

00-347717-00001 00-347717-1 00-715122 15122 347717-1 715122

JACKSON:

05930-303-26-17 164100 164101 5930-303-26-17 59303032617 6401-016-41-01 64010164101

VULCAN HART:

00-347717-00001 00-715122 15122 347717-1 715122

Step1: Disconnect electrical power and verify zero voltage before servicing the unit.

Step2: Remove access panel to expose the control switch assembly.

Step3: Detach control knob and label wiring connections for proper reconnection.

Step4: Unscrew and remove the faulty switch from its mounting bracket.

Step5: Install the new switch and secure it firmly in place.

Step6: Reconnect wiring, reassemble panel, restore power, and test ON/OFF operation for proper operates.
