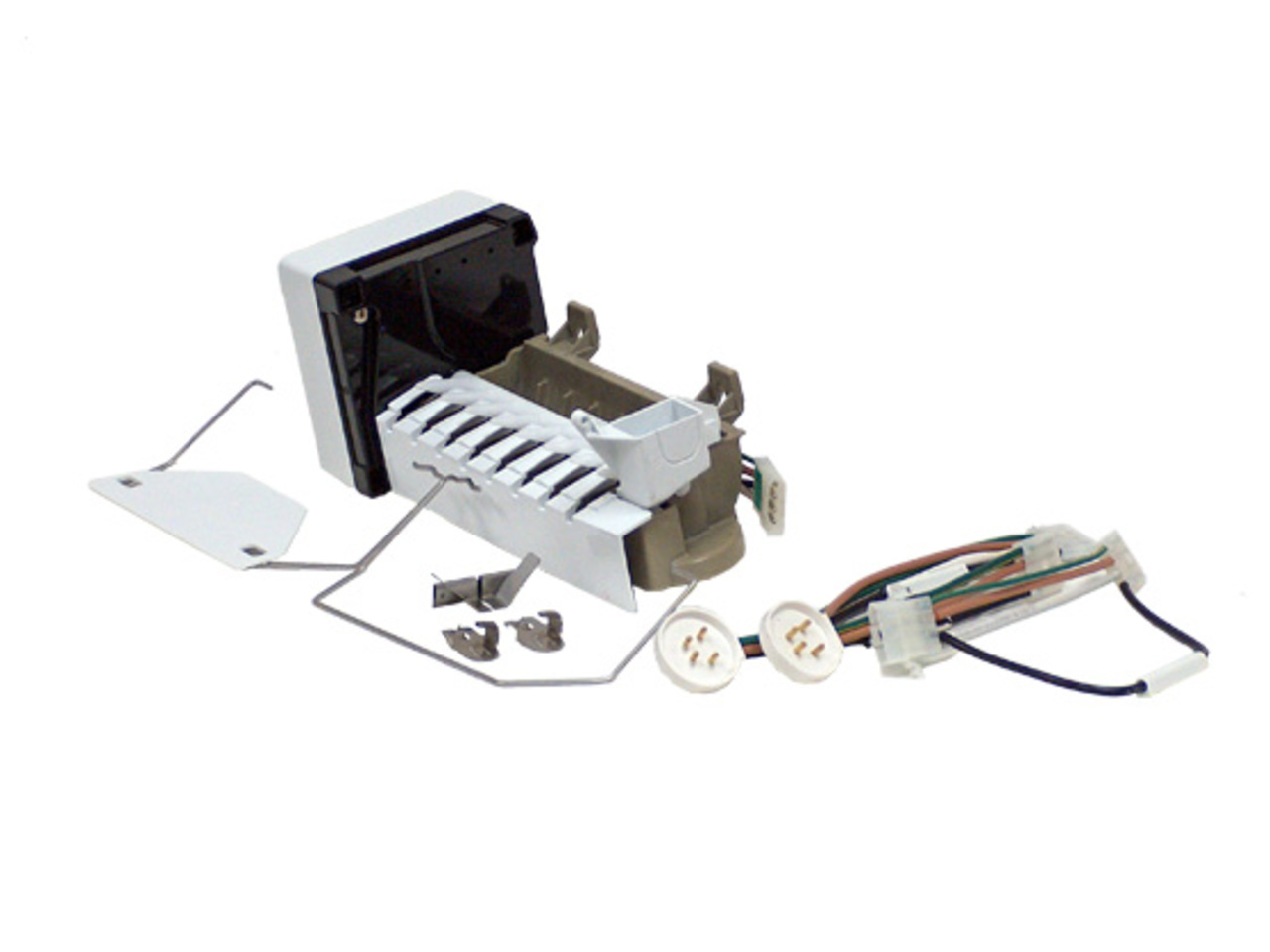

Whirlpool 4317943 Refrigerator Icemaker Assembly
More Information:
This Part Fits the Following Models
725 models:
4201760|4200210|4210317|4211173|480616|480617|482014|482015|482016|482017|482018|482019|482020|482394|482433
Step 2: The control panel cover situated at the top of the refrigerator is found and detached. This is achieved by utilizing a Phillips screwdriver to take out the screws securing the cover.
Step 3: The ice maker assembly within the refrigerator is identified. A flathead screwdriver is employed to loosen and take out the screws that are affixing the assembly.
Step 4: The power supply is unplugged from the wall outlet.
Step 5: The ice maker assembly is carefully extracted from the refrigerator.
Step 6: The new ice maker assembly is positioned by matching the holes in the bottom plate with the pins in the refrigerator. The assembly is fastened using the flathead screwdriver.
Step 7: The power supply is reattached to the wall outlet.
Step 8: The control panel cover is reinstalled and secured using the Phillips screwdriver.
Step 9: The refrigerator is reconnected to the power and turned on.
Step 10: The ice maker assembly is verified to ensure it operates correctly.
Please note that these instructions are served as general guidance and should always be used alongside the manufacturer's manual, if it is available.
Customer Reviews
Write a Review
-
Fit perfectly
Perfect replacement for my broken ice maker, crescent cubes are good, and it's been working smoothly
-
Highly Functional
Highly functional, easy to install, and works flawlessly
