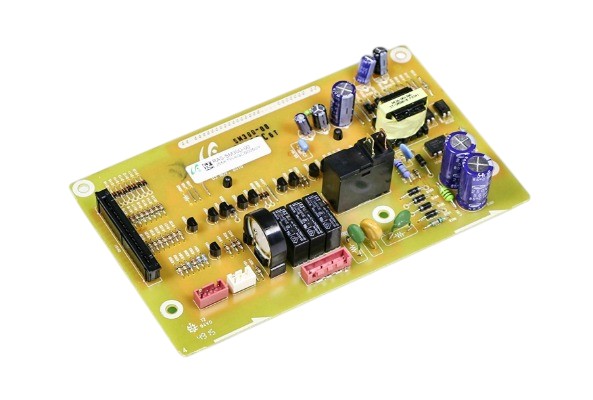

General Electric WB27T11345 Oven Main Control Board

Step 1: The oven should be disconnected from the wall outlet. For enhanced safety, a circuit tester should be utilized to confirm that the power is off.

Step 2: The screws located at the back of the oven that secure the control panel should be taken out. The panel should be gently extracted and placed aside.

Step 3: The main control board should be identified. It will be situated behind the control panel and linked to the oven’s wiring harness.

Step 4: The wiring harness should be detached from the existing board. Each wire should be ensured labeled for straightforward reinstallation later.

Step 5: The screws that fasten the old board to the oven should be taken off.

Step 6: The new board should be secured to the oven using the screws supplied.

Step 7: The wiring harness should be reconnected to the new board. It should be verified that the same colored wires labeled in step four are used.

Step 8: The control panel should be reattached along with the replacement screws.

Step 9: The oven should be reconnected to the wall outlet and the board’s operation should be verified.

Please remember, these guidelines serve as general advice and should always be utilized alongside the manufacturer’s manual, if one is available.
