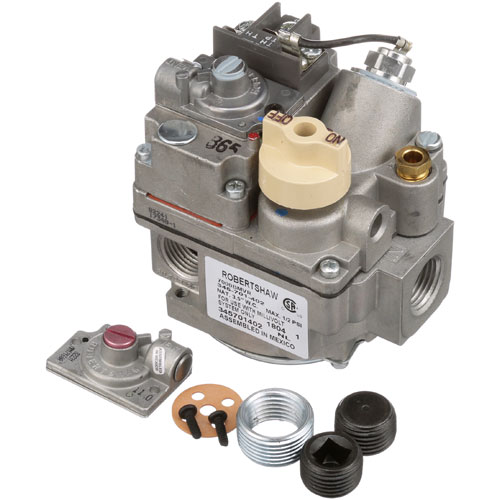

Hobart 721040-2 Gas Control Valve 1/2" FPT X 3/4" FPT

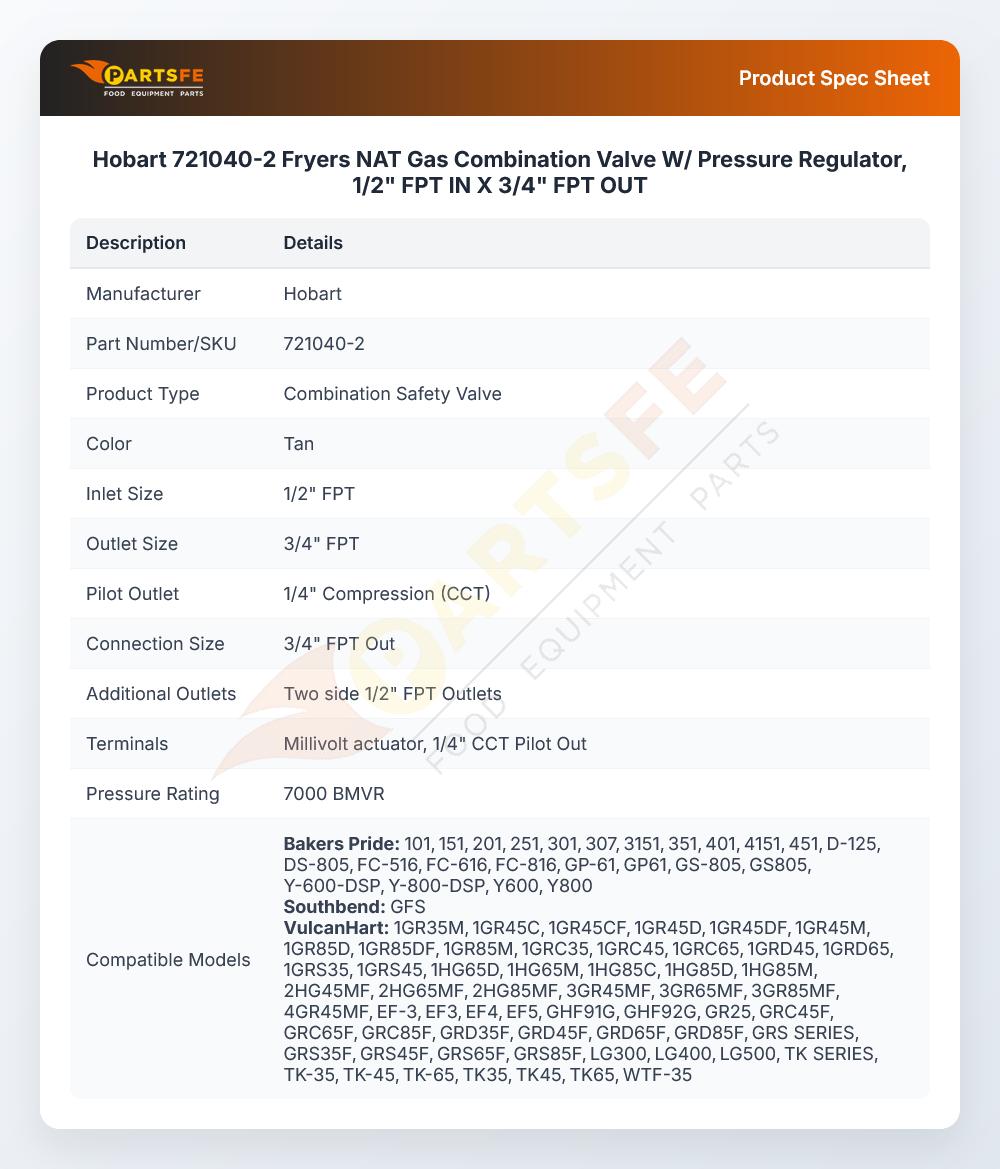

Specifications:
| Attribute | Details |
|---|---|
| Nat Gas Combiation Valve Supplied With Pressure Regulator | |
| And Instructions To Convert To Lp | |
| 7000 Bmvr | |
| 1/2" Fpt In X 3/4" Fpt Out W/2 Side 1/2" Fpt Outs | |
| Millivolt Actuator, 1/4" Cct Pilot Out, | |
| With Knob Extension Bracket. | |
| Anets Fryer 14Vfs, Bff24 | |
| Bakers Pride Oven 101, 151, 201, 251, 301, 307, 3151, 351, | |
| 401, 4151, 451, D-125, Ds-805, Fc-516, Fc-616, Fc-816,Gp61, | |
| Gs805, Y600, Y800, | |
| Dean Fryer Psm35Gm-Ms & Many Other Gas Fryers. | |
| Frymaster Fryer | |
| Southbend Fryer Gfs |
Dimensions:
- Weight: 2.4 lbs
- Length: 5.75 in
- Height: 3.38 in
- Width: 5.75 in
More Information:
FRYMASTER:
SOUTHBEND:
U-LINE:
345-701-402LP 700-503
Step1: Turn off gas and power verify zero pressure.
Step2: Remove old valve clean pipe threads.
Step3: Apply gas-rated sealant.
Step4: Install new valve orientation arrow correct connect inlet and outlet.
Step5: Tighten fittings avoid over-torque.
Step6: Attach pressure regulator as specified.
Step7: Leak test with soap solution.
Step8: Restore gas and check burner operation.
