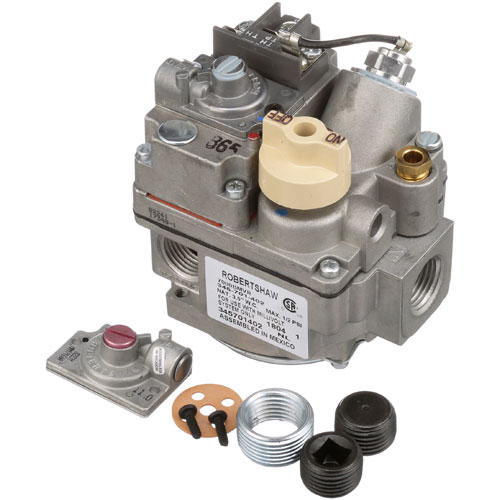

Bakers Pride R3124X Combination Valve W/Pressure Regulator NAT Gas 1/2" FPT IN X 3/4" FPT OUT
Specifications:
| Attribute | Details |
|---|---|
| Nat Gas Combiation Valve Supplied With Pressure Regulator | |
| And Instructions To Convert To Lp | |
| 7000 Bmvr | |
| 1/2" Fpt In X 3/4" Fpt Out W/2 Side 1/2" Fpt Outs | |
| Millivolt Actuator, 1/4" Cct Pilot Out, | |
| With Knob Extension Bracket. | |
| Anets Fryer 14Vfs, Bff24 | |
| Bakers Pride Oven 101, 151, 201, 251, 301, 307, 3151, 351, | |
| 401, 4151, 451, D-125, Ds-805, Fc-516, Fc-616, Fc-816,Gp61, | |
| Gs805, Y600, Y800, | |
| Dean Fryer Psm35Gm-Ms & Many Other Gas Fryers. | |
| Frymaster Fryer | |
| Southbend Fryer Gfs |
Dimensions:
- Weight: 2.4 lbs
- Length: 5.75 in
- Height: 3.38 in
- Width: 5.75 in
More Information:
FRYMASTER:
SOUTHBEND:
U-LINE:
345-701-402LP 700-503
Step1: Turn off gas supply and disconnect power to the appliance for safety.
Step2: Remove the old valve and clean the pipe threads thoroughly.
Step3: Apply gas-rated thread sealant to inlet and outlet fittings.
Step4: Connect inlet and outlet securely.
Step5: Tighten with a proper tool without over-torquing the fittings.
Step6: Restore gas supply and check all joints for leaks using soap solution.
Step7: Reconnect power and test appliance operation.
