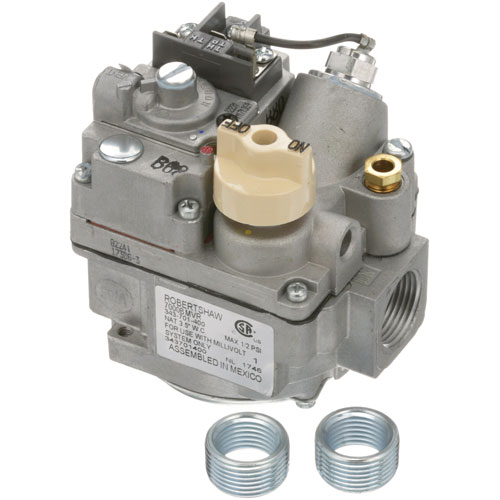

Dean 807-0115 Natural Gas Safety Control, 3.5" WC Model 7000 BMVR

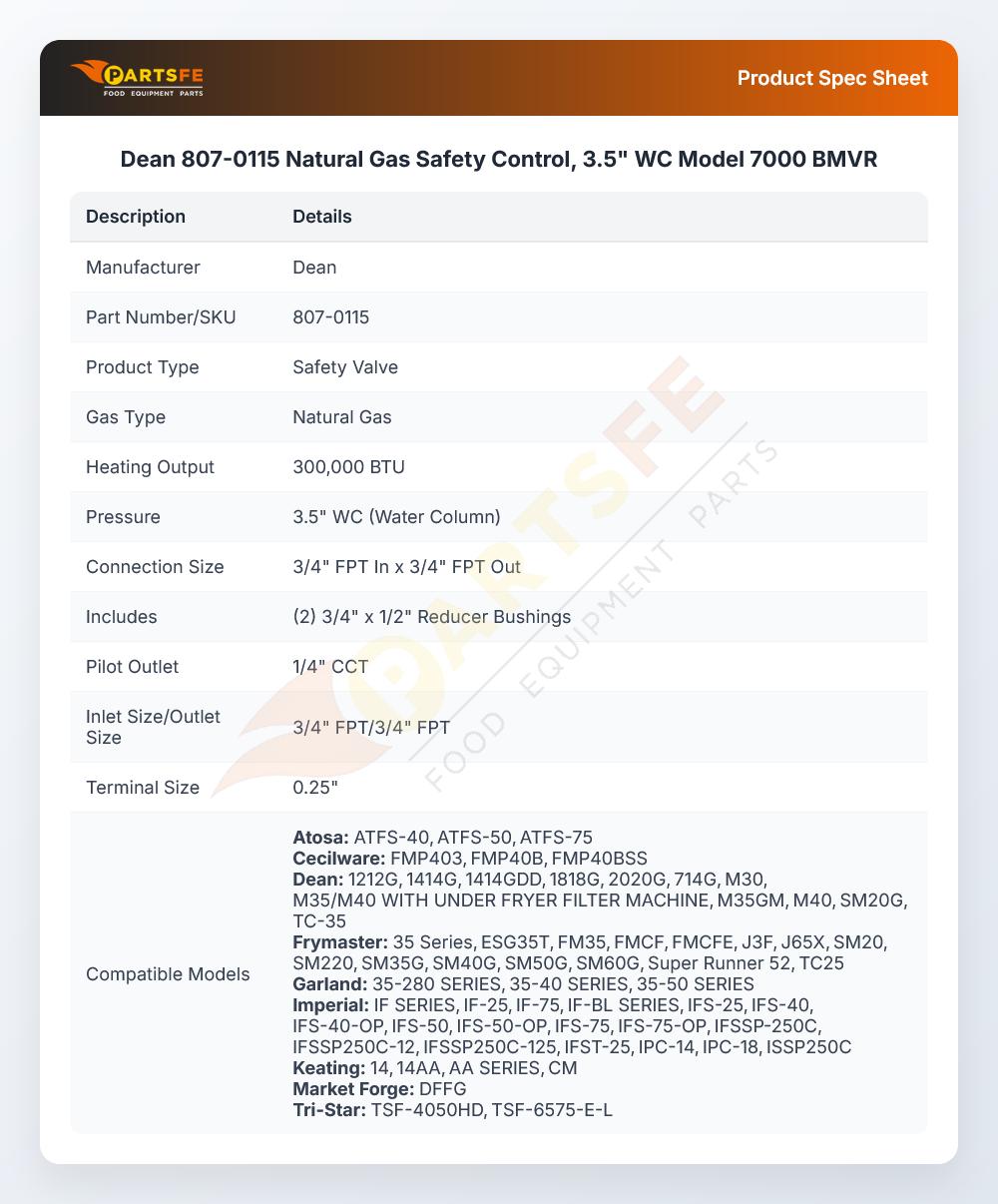

Specifications:
| Attribute | Details |
|---|---|
| Nat Gas Safety, 3.5" Wc, Model 7000 Bmvr, Mfg#700-506 | |
| 3/4" Fpt In X 3/4" Fpt Out, Includes 3/4" X 1/2" Reducer | |
| Bushings, Millivolt Actuator, Requires Wire Lead | |
| Thermopile, 36" # 51-1121 Or 60" # 51-1257 | |
| 1/4" Cct Pilot Out, 300,000 Btu | |
| For Lp Conversion Use # 51-1470 | |
| Bakers Pride Oven Following Models Made After 10/94 | |
| Y600, Y800, Ds-805, Gs-805, D-125, 101, 151, 201 | |
| 251, 301, 351, 3151, 401, 451, 4151, Fc-(516,616,816) | |
| Cecilware Fryer Fmp-30, Fmp-40, Fmp-65, Fmp-403, Fms-30, | |
| Fms-40, Fms-65. | |
| Frymaster Fryer Models Made Before Feb. 1993 | Gf14, Gf40, |
| J1C, Jcfx, J3Fc, J65X, Mj15, Mj35, Mj235, Mjcf. | |
| Imperial Fryer Series | If, Ihr, Ir. |
| Keating Fryer Gas Counter Units And Miraclean Griddles. |
Dimensions:
- Weight: 2.4 lbs
- Length: 5.7 in
- Height: 3.5 in
- Width: 4.5 in
More Information:
ATOSA:
BLOOMFIELD:
ENTR?E:
400042-1RS
FRYMASTER:
1896 807-0306 807-2428 807-3645 8070114 8070115 8070306 8072428 8073645 810-0014 8100014 FM1896 FM807-0115 FM807-0306 FM807-2428 FM8070114 FM8070115 FM8070306 FM8072428 FM810-0014 FM8100014
JADE RANGE:
MARKET FORGE:
U-LINE:
343-701-400 343-811-400 700-506
Step1: Turn off gas supply and electrical power before starting work.
Step2: Allow fryer or appliance to cool completely.
Step3: Remove access panel to expose gas control assembly.
Step4: Label and disconnect inlet, outlet, and pilot gas lines.
Step5: Remove faulty safety control valve from mounting bracket.
Step6: Install new valve rated for in correct flow direction.
Step7: Reconnect all gas lines tightly and check for leaks.
Step8: Restore gas and power, then test ignition and safety shutoff operation.
